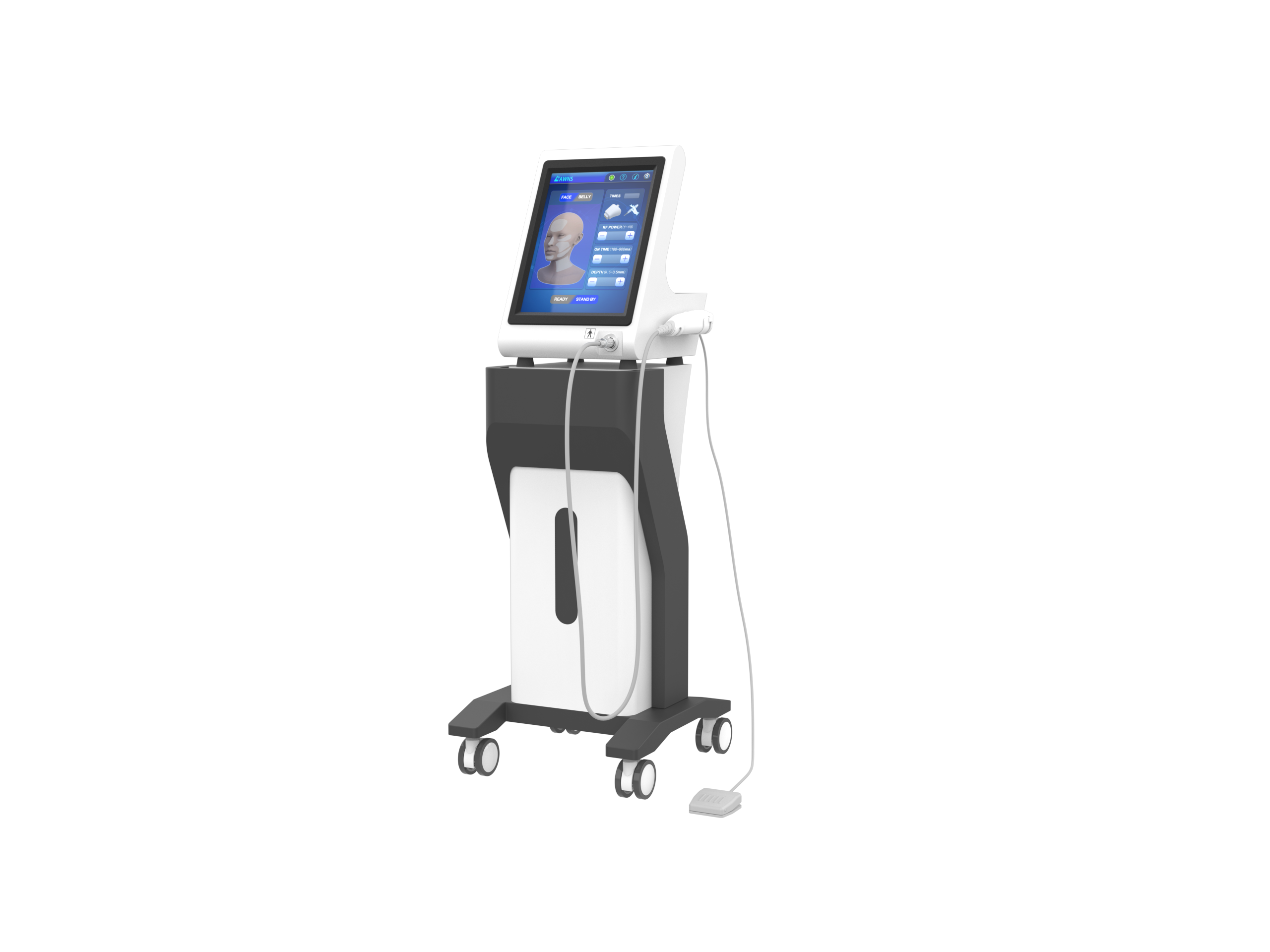

FotroMed AWNS fractional rf microneedling machine is designed for professional clinics, medspas, skin centers, and distributors. It combines microneedling with fractional radio frequency energy to support skin tightening, acne scar improvement, wrinkle reduction, pore refinement, and skin rejuvenation. With adjustable needle depth, replaceable treatment tips, and stable RF output, this RF microneedling machine helps professionals deliver controlled treatments for different skin concerns and treatment areas.
Key Features:
FDA-cleared RF microneedling device for professional aesthetic use.
Fractional rf energy supports skin tightening, scars, wrinkles, and texture improvement.
Adjustable needle depth helps operators treat different facial and body areas with better control.
Multiple treatment tips support flexible RF microneedling treatments for clinics and medspas.
One-on-one training, one-year warranty, and after-sales support are available for professional buyers.
Operators can choose suitable tips according to the treatment area, skin concern, and treatment plan.
The RF microneedling handpiece supports controlled energy delivery for face and selected body treatments.

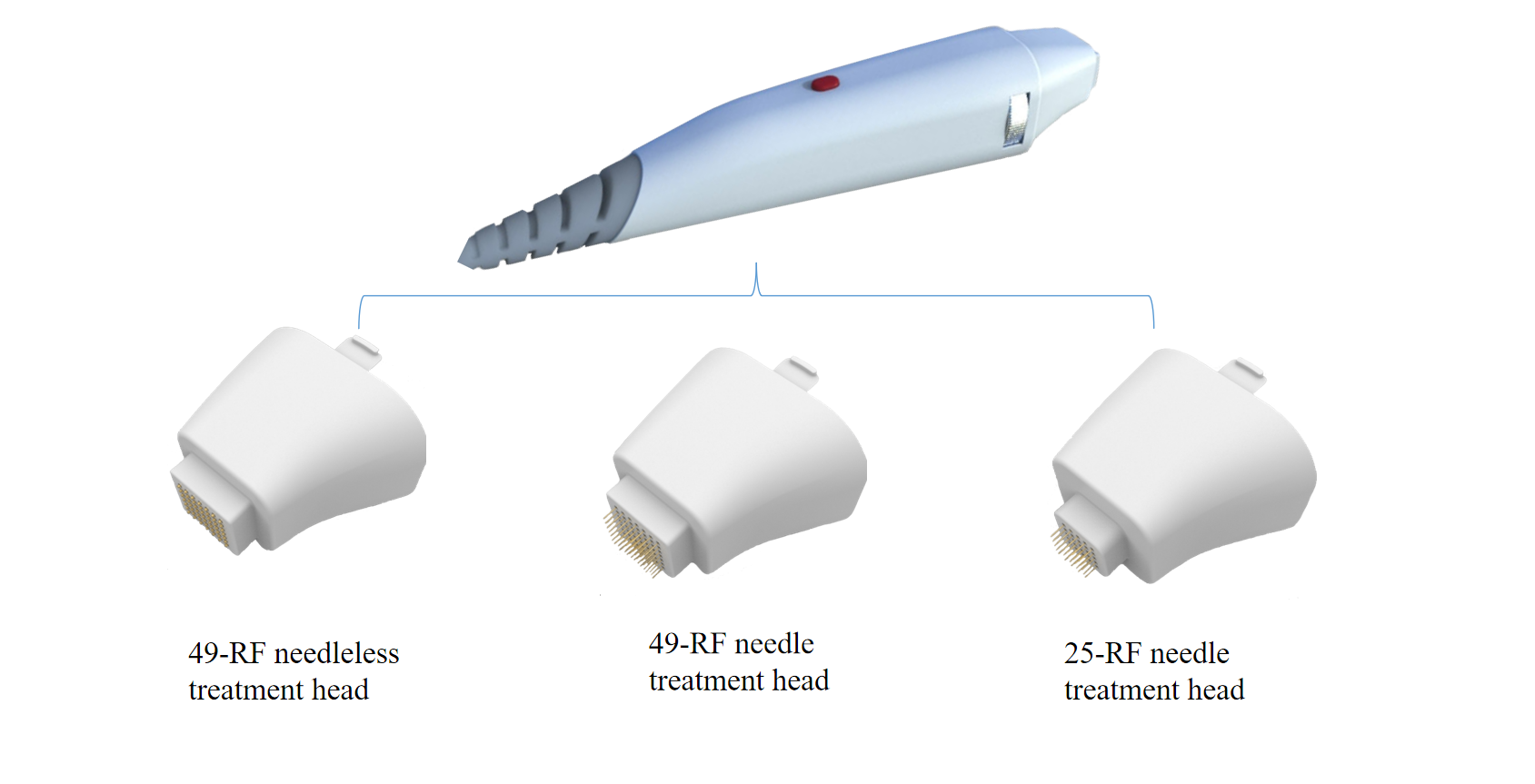

25-pin and 49-pin microneedling tips help clinics treat smaller areas, larger areas, scars, pores, and skin texture concerns.
The non-invasive RF tip gives clinics an additional option for surface firming and skin rejuvenation support.
Designed for Clinics, Medspas & Distributors
FotroMed AWNS fractional RF microneedling machine is designed for professional buyers who need stable machine performance and long-term support.
Clinics can use it for anti-aging, skin tightening, and scar improvement treatments.
Medspas can add RF microneedling services to increase treatment options for clients.
Distributors can use it as a professional RF microneedling machine for local market sales.
What Is a Fractional RF Microneedling Machine?
A Professional RF Microneedling Device
A fractional RF microneedling machine is a professional aesthetic device that combines microneedles with radio frequency energy.
It is suitable for aesthetic clinics, medspas, skin centers, and professional beauty businesses.
It supports common treatment needs such as loose skin, acne scars, enlarged pores, fine lines, and uneven skin texture.
It helps clinics add a high-demand RF microneedling service to their treatment menu.
RF Energy and Microneedles in One System

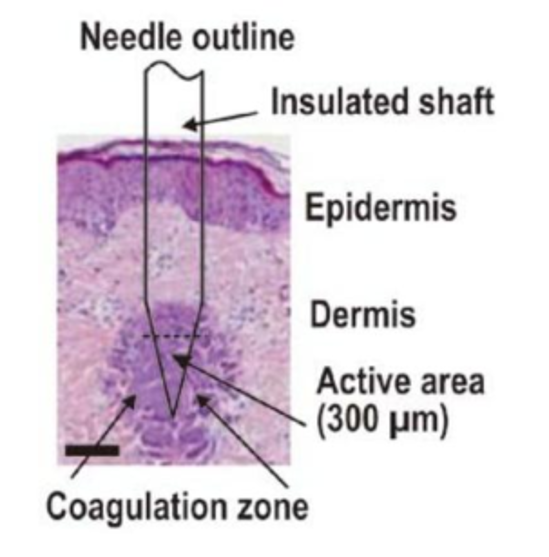

This RF microneedling device uses microneedles to deliver radio frequency energy below the skin surface.
Microneedles create controlled micro-channels in the skin.
RF energy reaches the dermal layer to support skin firming and renewal.
The combined system helps improve texture, elasticity, scars, pores, and overall skin quality.
How Fractional RF Microneedling Works
Microneedles Create Controlled Micro-Channels
During treatment, the microneedles enter the skin at an adjustable depth. This creates controlled micro-channels and helps start the skin renewal process.
Adjustable needle depth helps operators treat different facial and body areas with better control.
Controlled penetration supports professional RF microneedling treatments for texture, scars, and skin laxity.
The micro-channels work with RF energy to support collagen remodeling and smoother-looking skin.
RF Energy Heats the Dermis
After the microneedles reach the target depth, the machine delivers radio frequency energy into the dermis.
Dermal heating supports skin tightening, firming, and elasticity improvement.
RF energy helps improve acne scars, rough texture, and mild skin laxity over time.
The treatment mechanism makes the machine useful for both anti-aging and skin rejuvenation programs.
Fractional Delivery Helps Protect the Skin Surface
Fractional RF energy treats the skin in controlled zones instead of heating the entire surface.
Fractional energy delivery supports better epidermal protection and more focused dermal heating.
It can help reduce downtime compared with more aggressive resurfacing treatments.
It gives clinics a flexible option for different skin types, treatment areas, and client needs.
Fractional RF Microneedling Machine Benefits
Gold RF Microneedling for Skin Rejuvenation
This RF microneedling machine combines gold-plated microneedles with fractional radio frequency energy to support collagen remodeling and skin renewal.
Gold-plated tips help deliver RF energy into the dermal layer with stable contact.
It supports skin tightening, pore refinement, acne scar improvement, and smoother texture.
Acne Scar and Skin Texture Improvement
RF microneedling is widely used for acne scars and rough skin texture.
It helps improve the appearance of acne scars, acne pits, and uneven skin texture.
It supports collagen remodeling in damaged or rough skin areas.
China Fractional RF Microneedle Machine Factory
Direct Factory Supply for Professional Buyers
As a China fractional RF microneedle machine factory, we support professional buyers who need stable supply and long-term cooperation.
Direct factory cooperation helps buyers control product cost and shorten communication time.
Specifications of Fractional RF Microneedling Machine
Model
FotroMed AWNS
RF System
Bi-polar Radio Frequency (RF)
RF Frequency
1MHZ
Pulse width
10~1000 ms
System Control
Pedal/Handle
Power Level
1~10 Level(Max peak power 50W)
Display Interface
15-inch smart color touchs creen
Total Weight
25KG (trolly included)
Needle Penetration Depth
0.5mm – 3.5mm
Host Dimensions
350mm × 345mm × 425mm
Voltage Compatibility
AC 100V-240V; 50/60Hz
Control Mechanism
Dual Control: Pedal Switch / Handle Button
Tip Type
Needle/Rod Diameter
Coverage Area
49-PIN Tip
0.2mm Gold-plated
10.5mm × 10.5mm
25-PIN Tip
0.2mm Gold-plated
7mm × 7mm
49-RF Tip
0.6mm Gold-plated rod
10.5mm × 10.5mm
Fractional RF Microneedling Machine Applications
Facial Rejuvenation & Tightening
Deliver exceptional anti-aging results for delicate facial areas.
Non-surgical face lifting and comprehensive skin tightening.
Reduction of fine lines, crow’s feet, and neck wrinkles.
Visible pore reduction and effective skin brightening.
Fading dark acne marks and improving dull complexions.
Advanced Scar & Acne Treatment
Target damaged tissues to restore smooth, healthy skin structures.
Deep repairing of acne pits and surgical trauma scars.
Destroying sebaceous glands to control active acne breakouts.
Killing Propionibacterium acnes to prevent future infections.
Electrocoagulation and hemostasis for general surgical procedures.
Body Contouring & Skin Restoration
Expand your clinic’s offerings with comprehensive body treatments.
Effective postpartum repair for abdominal stretch marks.
Smoothing deep expansion marks on hips and legs.
Treating rough skin conditions like Keratosis Pilaris.
Improving mild axillary odor by targeting sweat glands.
Get A Quote
Leave a message with your questions and our consultants will reply within 24 hours.
*All your information are respected & protected.
Getting a Quote for Our Machine
Tell us what treatments you want to offer, your budget range, and whether you need OEM branding. Our team will help you compare suitable Fotromed devices, explain the key differences, and prepare a clear quotation with shipping details. We’ll help you find a practical solution for your clinic, spa, or beauty business.
Is the Fractional RF Microneedling Machine and safe for clinical use?
Yes, the FotroMed AWNS is an FDA-cleared Fractional RF Microneedling Machine, ensuring it meets strict medical safety and efficacy standards for clinical aesthetic use. It utilizes a precisely controlled bi-polar RF energy combined with minimally invasive micro-needles to protect the epidermis while delivering therapeutic heat deep into the dermis. This advanced dermal coagulation mechanism significantly lowers the risk of skin burns and post-inflammatory hyperpigmentation (PIH), making it a highly reliable and safe addition to your practice.
How does this Fractional RF Microneedling Machine differ from traditional microneedling?
Traditional microneedling only creates physical micro-injuries to stimulate surface-level skin healing. The FDA machine Microneedling machine elevates this by combining physical penetration with 1MHz bi-polar radiofrequency energy. This RF energy is released directly at the tips of the 0.2mm gold-plated insulated microneedles deep within the skin. This powerful synergy promotes immediate protein denaturation and accelerated collagen proliferation, yielding much faster and more dramatic results for non-surgical face lifting, wrinkle reduction, and scar repair.
what is the expected downtime for patients?
The procedure significantly reduces downtime when compared to traditional fractional laser-based treatments. Before the procedure, a topical numbing cream is applied for 15-20 minutes to ensure minimal discomfort. Because the ideal distance among needles prevents energy overlapping and the insulated shafts protect the skin's surface, patients experience optimal, uniform thermolysis with a very smooth and rapid healing process.
How many treatment sessions are required to see optimal results?
For optimal structural skin remodeling and lasting rejuvenation, a standard treatment course typically consists of 3 to 5 sessions, spaced approximately one month apart. The exact number of sessions will depend on the patient's specific dermatological concerns, such as the severity of deep acne pits, deep facial wrinkles, or abdominal stretch marks. However, because the targeted thermal energy immediately triggers the body's natural collagen production, many patients begin to notice visible lifting and skin brightening effects shortly after their very first session.
Is this machine safe to use on darker skin types?
Absolutely. One of the most significant clinical advantages of the RF microneedling machine is that it can be safely and effectively treated for all skin types, including darker skin tones. Because the insulated gold-plated microneedles completely bypass the melanin-rich epidermis and deliver the RF energy exclusively into the deeper dermal layers, it virtually eliminates the risk of post-inflammatory hyperpigmentation.
